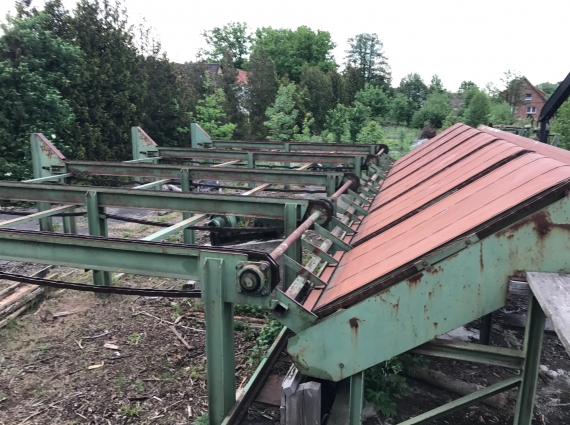

Item 1: Logdeck
- 4 cross chains 6m long driven by a 5,5kw geared motor
Item 2: Log singulator
- Incline conveyor with 3 chains and dogs driven by a 4kw geared motor
Item 3:Log Haul conveyor
- 2 troughing belt conveyors each 6m long driven by a 2,2kw geared motor
Item 4: A.) Log sorting line with volume calculation for 10 boxes

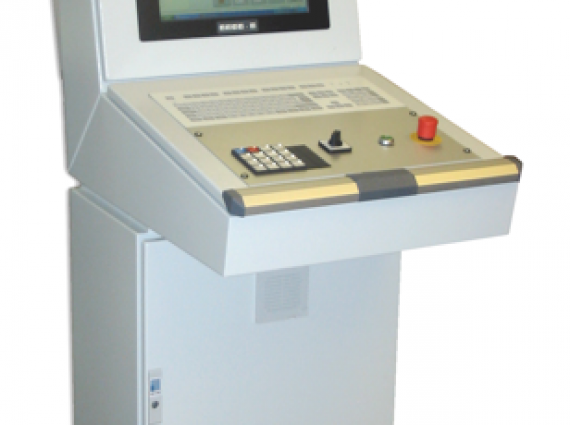

- Basis Console with integrated in 17“ Touch screen Monitor (compare image) and all necessary control elements.
- Industrial PC for control and optimization Board for use in an industrial environment
- Operating System: Windows 7 Professional
- CPU Intel Core i3-540, 3,06 GHz; RAM 4 GB
- Interface: 2x G-LAN, 2 x COM, 8 x USB 2.0
- HDD: >270 GB
- Laser-Printer DIN A4
- 100 different memory for the control of incoming wood deliveries.
- integrated soft PLC for controlling the whole system with Siemens S7 programming
- Control outputs for 10-boxes
- control of the complete log sorting line
- visualization of the complete system
- Remote diagnostics via the Internet with TeamViewer
- fault messages in plain text on the screen
- language program in German and English (switchable)
B.) SDE 2D Measuring frame for logs
- Horizontal: Infrared-Scanner Type DM 512
- Measuring height: 512 mm
- Resolution: 1 mm
- Measuring frequency: 480 measurements per second
- Protection: IP 65
- Rotary Pulse Encoder for detection of length
C.) Expansion of the control system
- Control of 10 boxes by motor and sensors
- Control of the complete system
- Maximum 32 inputs (24V-)
- Maximum 32 outputs (24V-, 100mA)
Log Sorting Conveyor
- With total of 10 boxes ( 5 left & 5 right)
- Logs are pushed of from the belt conveyor via kicker arms from the top, driven with geared motors.
