Mohringer Opti Edger
Consisting out of:

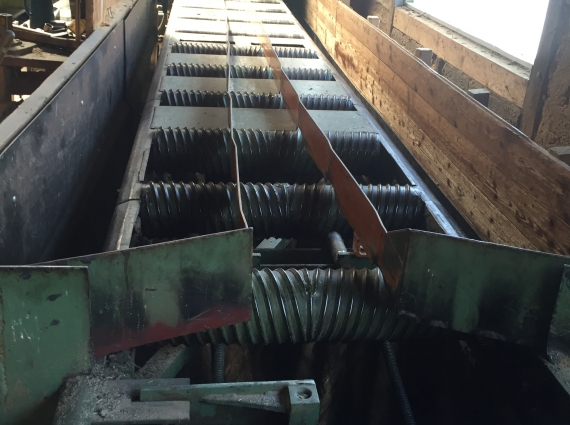

- Board Singulator / Unscampler.
- Cross-out Station.
- Measuring station in crossfeed with laser system from the top only.
- Infeed & alining table.
- Opti Edger with 3 independent movable saw heads.
- Outfeed separator conveyor with riving knives.
- Electrical control operator panels with Siemens S5 control system.
Technical Data:
- Min & Max board length: 1000-6000mm
- Min & Max cutting width: 60-500mm
- Min & Max cutting height: 18-180mm
- Feed Speed: 80,120 & 150m/min
- Capacity: 20-25 boards/min
- Maindrive motor: 55kW
